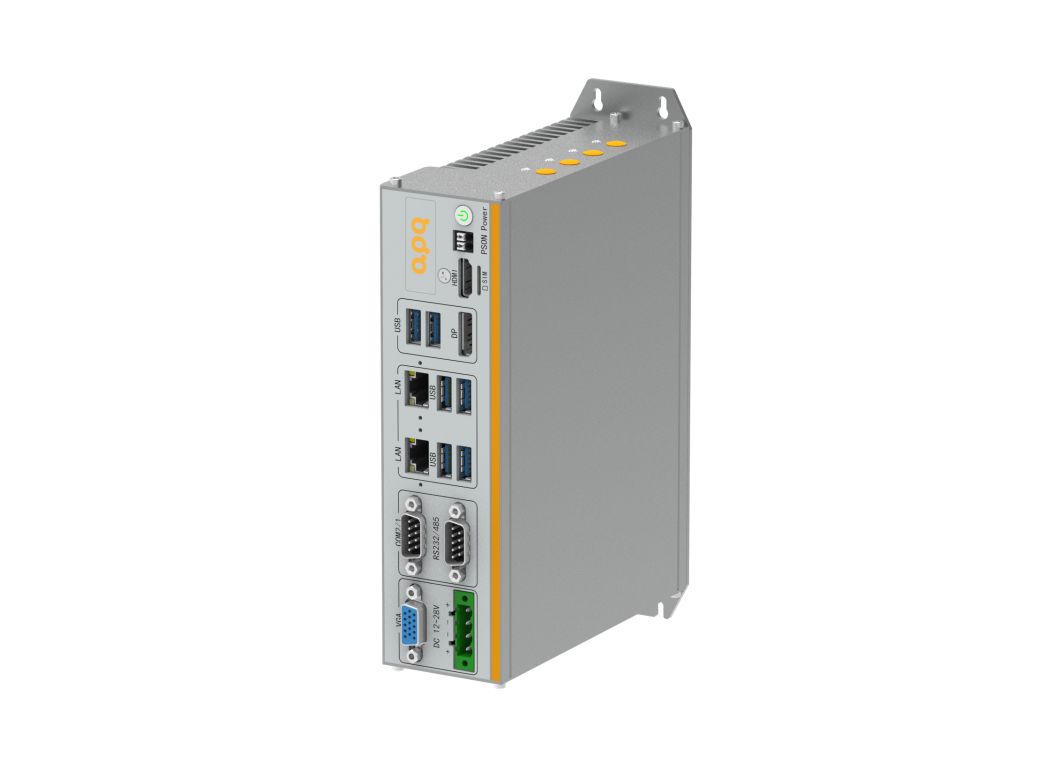

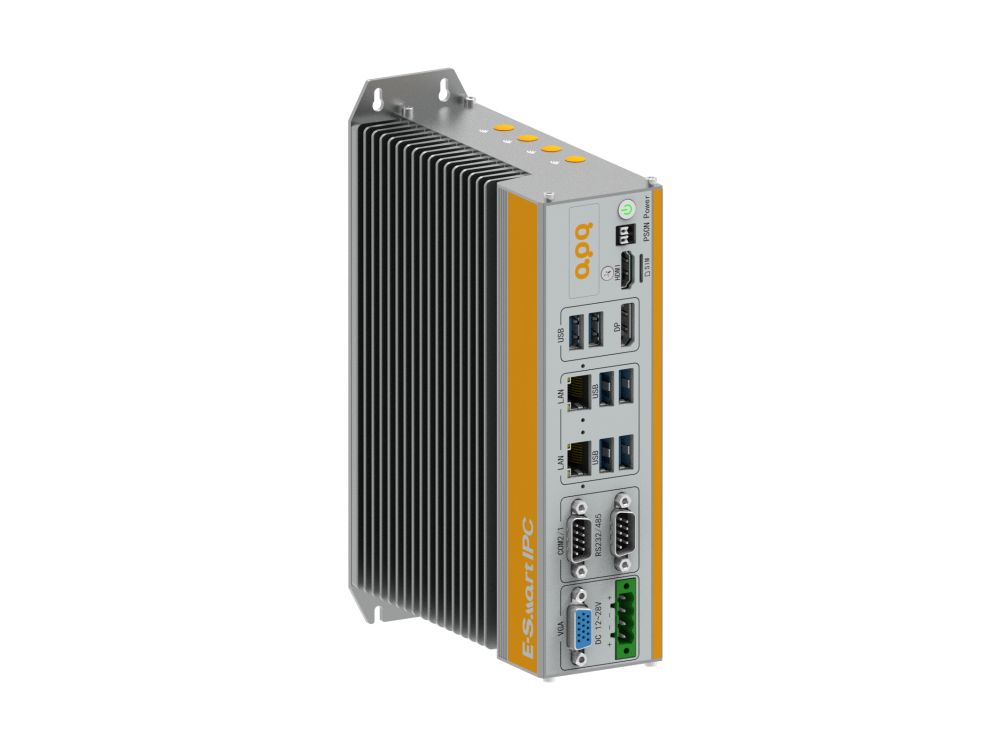

阿普奇 AK61xxA2 | 11th酷睿移動級 主機雙網口6USB 彈匣式控制器
產品描述
阿普奇 AK61xxA2 系列是AK6系列彈匣式模塊化控制器中的11代酷睿高性能型號。AK6系列定位為工業視覺工控機，是阿普奇緊湊型嵌入式控制器產品線中面向視覺和AI應用的性能旗艦。
核心平臺全面升級：Intel 11代酷睿i3/i5/i7移動-U系列處理器（Tiger Lake, 10nm SuperFin），相比AK5系列的Alder Lake-N，單核性能和多核效率均大幅領先。內存DDR4 SO-DIMM 3200MHz（最大32GB）。
圖形能力是AK6的核心升級：11代酷睿集成Intel Iris Xe Graphics（i5/i7型號）或UHD Graphics（i3型號）。Iris Xe的96個EU執行單元具備OpenVINO推理加速能力，可在無獨立GPU的情況下運行輕量AI模型——物體檢測、圖像分類、OCR識別等視覺任務。
存儲升級到NVMe時代：M.2 Key-M支持PCIe Gen3 x4 NVMe SSD（2280），讀寫速度數倍于AK5的SATA方案。雙Mini PCIe擴展（1路PCIe x1+USB2.0含SIM, 1路USB2.0可選PCIe x1）支持WiFi/BT和4G/5G/5G雙通信。

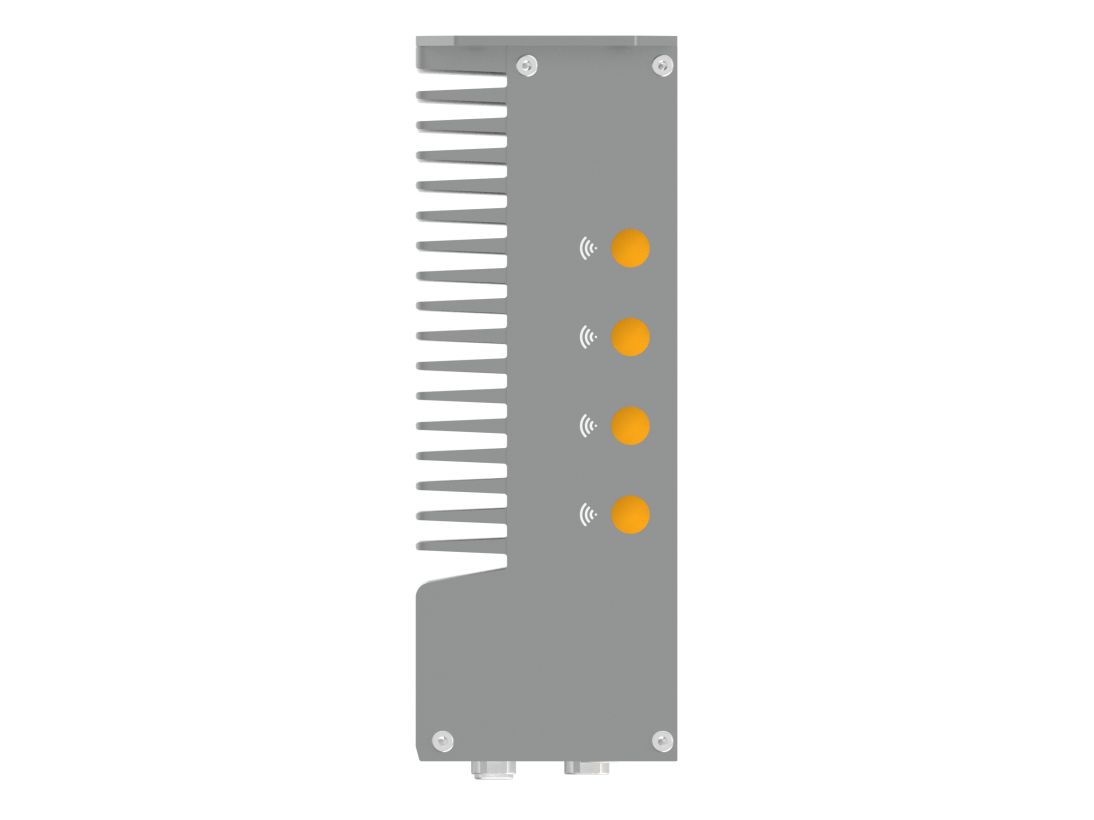

I/O方面：雙Intel網口（i210-AT + i219-LM），4×USB3.0 + 2×USB2.0（前置），內置USB2.0 Type-A加密狗專用。DP 4K@60Hz + HDMI 4K + VGA三路獨立顯示。2路RS232/485，AT/ATX切換，DC 12-28V寬壓。4個天線孔預示WiFi+4G+BT的多天線需求。可選配彈匣擴展。無風扇被動散熱。
11代酷睿+Iris Xe+NVMe+三顯4K的組合，使AK61xxA2成為緊湊型彈匣式控制器中的AI視覺旗艦。
|
Model |
AK61xxA2 |
|
|
CPU |
CPU | Intel??11th?Generation Core? i3/i5/i7 Mobile -U Processor |
| Chipset | SoC | |
|
BIOS |
BIOS | AMI UEFI BIOS |
|
Memory |
Socket | 1 * DDR4 SO-DIMM Slot, up to 3200MHz |
| Max Capacity | 32GB | |
|
Graphics |
Controller | Intel??UHD Graphics/Intel??Iris? Xe Graphics?(Dependent on CPU) |
|
Ethernet |
Controller | 1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel??i219-LM GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280) |
|
Expansin |
Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot) 1 * Mini PCIe (USB 2.0, PCIe x1 Gen2 is optional) |
| Optional Cabinet | 1E | |
|

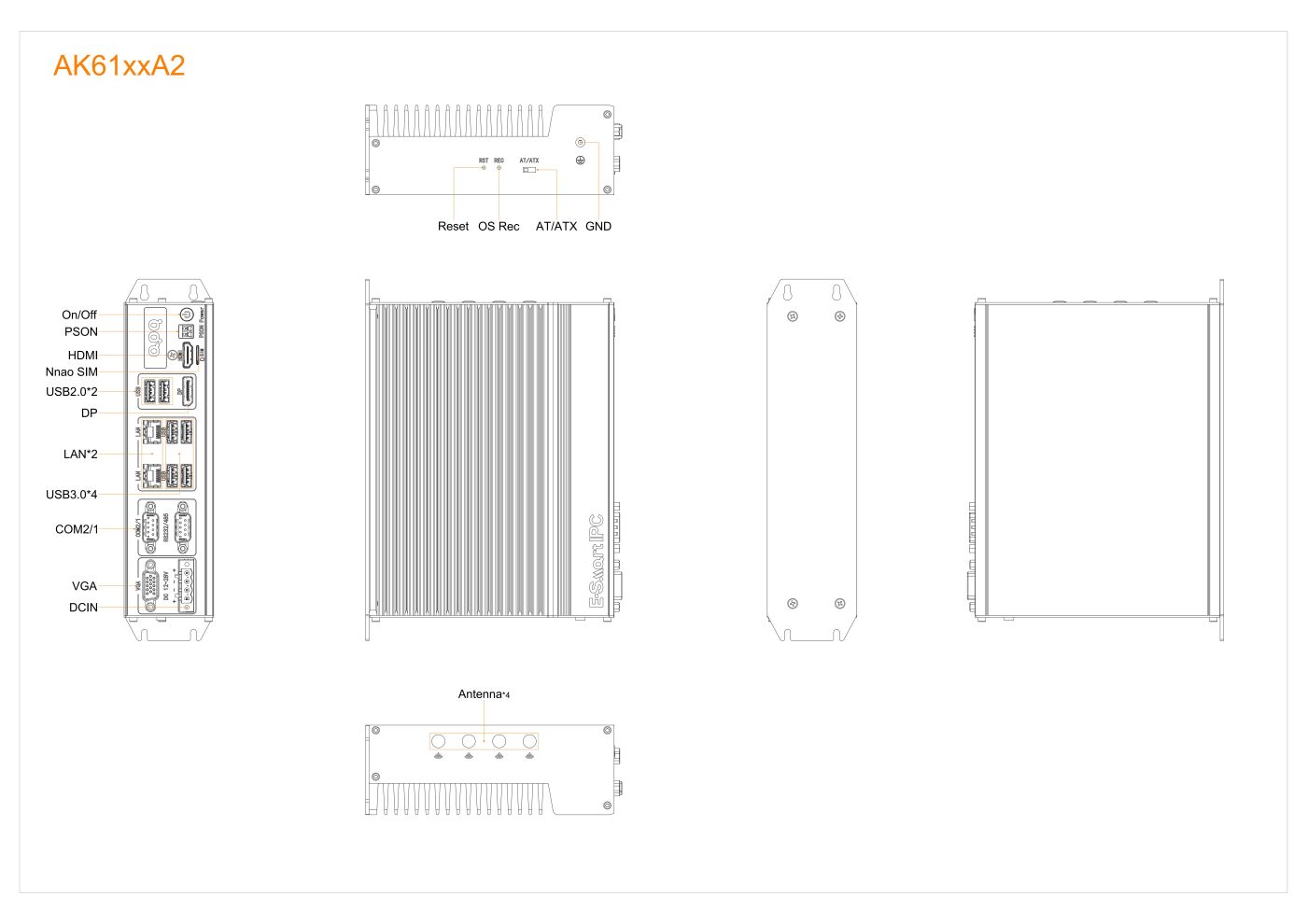

Front I/O |
USB | 4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A) |
| Serial | 2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch) | |
| Display | 1 * HDMI: max resolution up to 4096*2304 @ 24Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz 1 * VGA: max resolution up to 1920*1200 @ 60Hz |
|
| LAN | 2 * RJ45 | |
| Power | 1 * DC Power Input | |
| SIM | 1 * Nano SIM Card slot (Mini PCIe module provide functional support) | |
| Button | 1 * Power Button + Power LED 1 * PS_ON Connector |
|
|

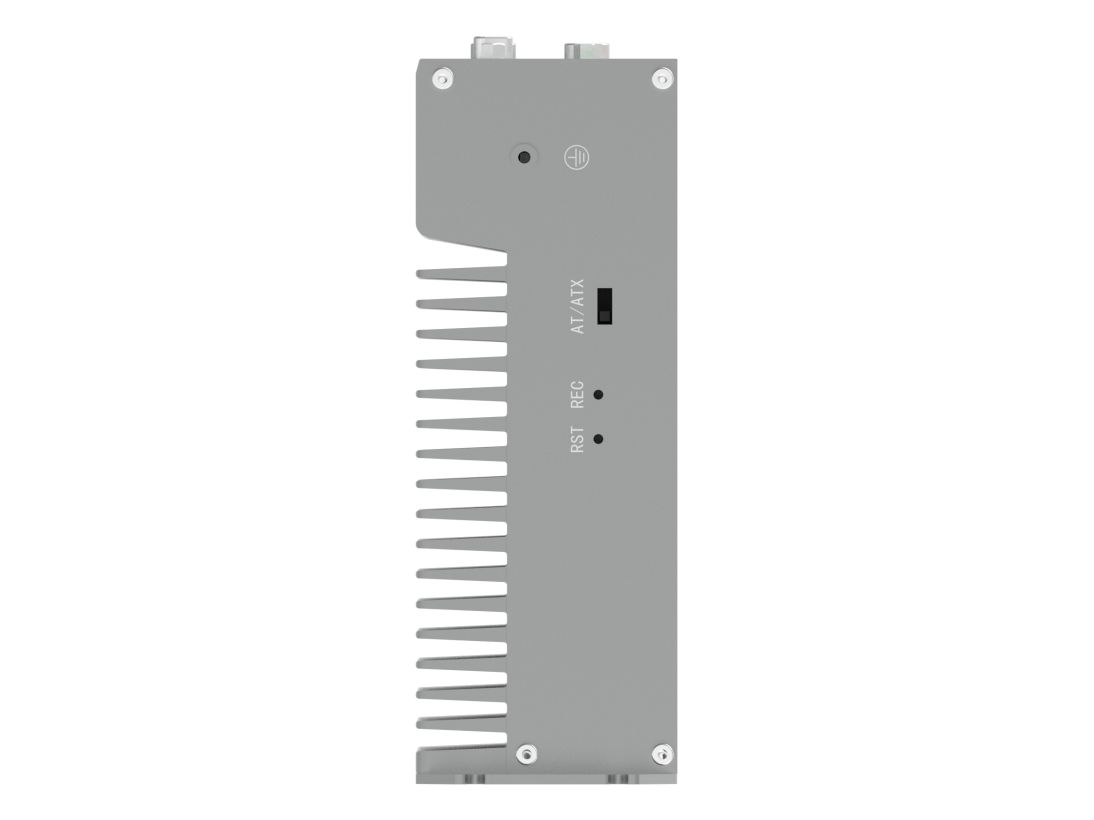

Bottom I/O |
Switch | 1 * AT/ATX Mode Switch (Enable/Disable automatically power on) |
| Button | 1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery) |
|
|
Power Supply |
Type | DC |
| Power Input Voltage | 12 ~ 28VDC Note：When using the light source, 24V input must be used. |
|
| Connector | 1 * 4Pin Power Input Connector (P= 5.08mm) | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable via Software from 1 to 255 sec | |
|

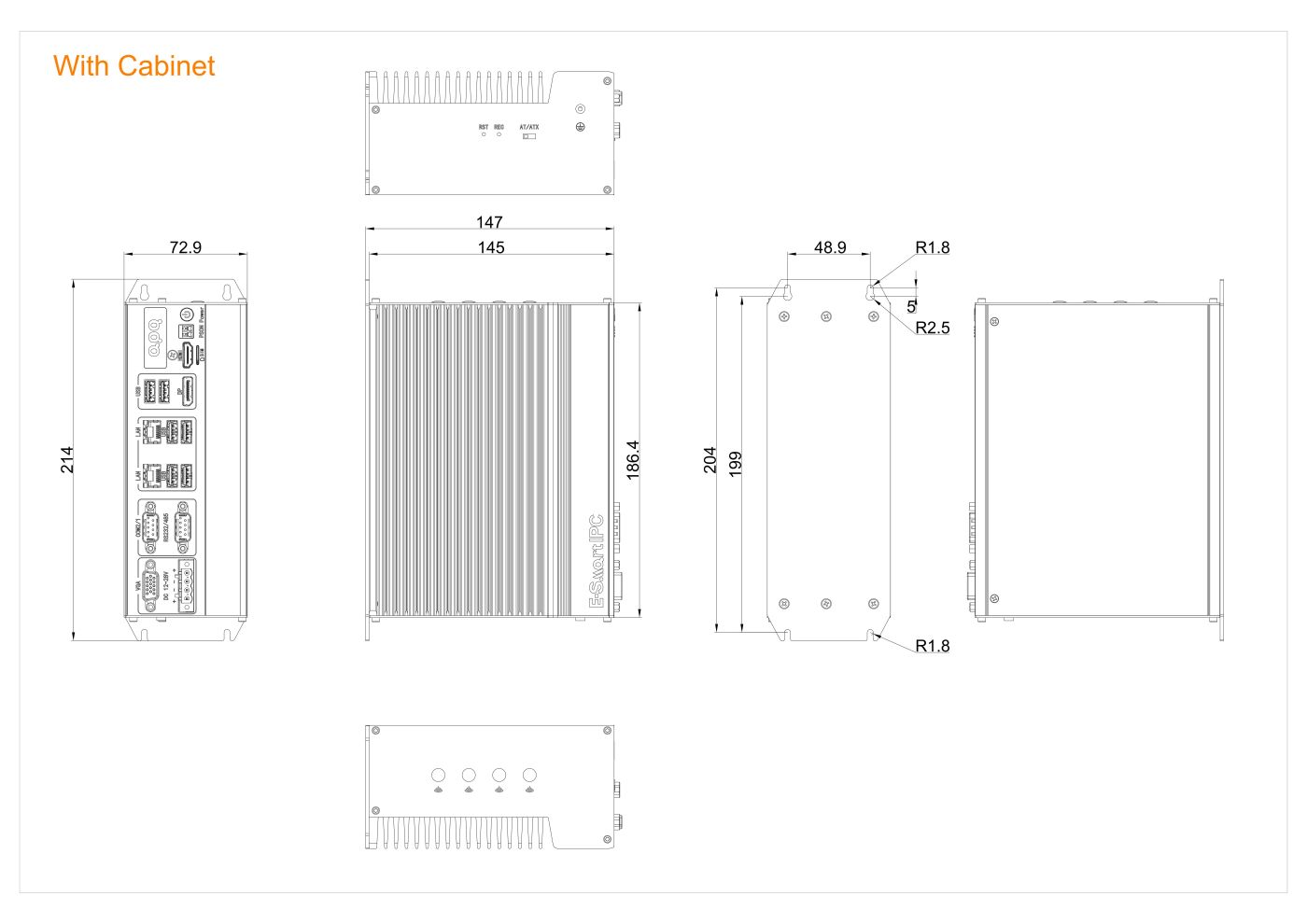

Mechanical |
Enclosure Material | Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC |

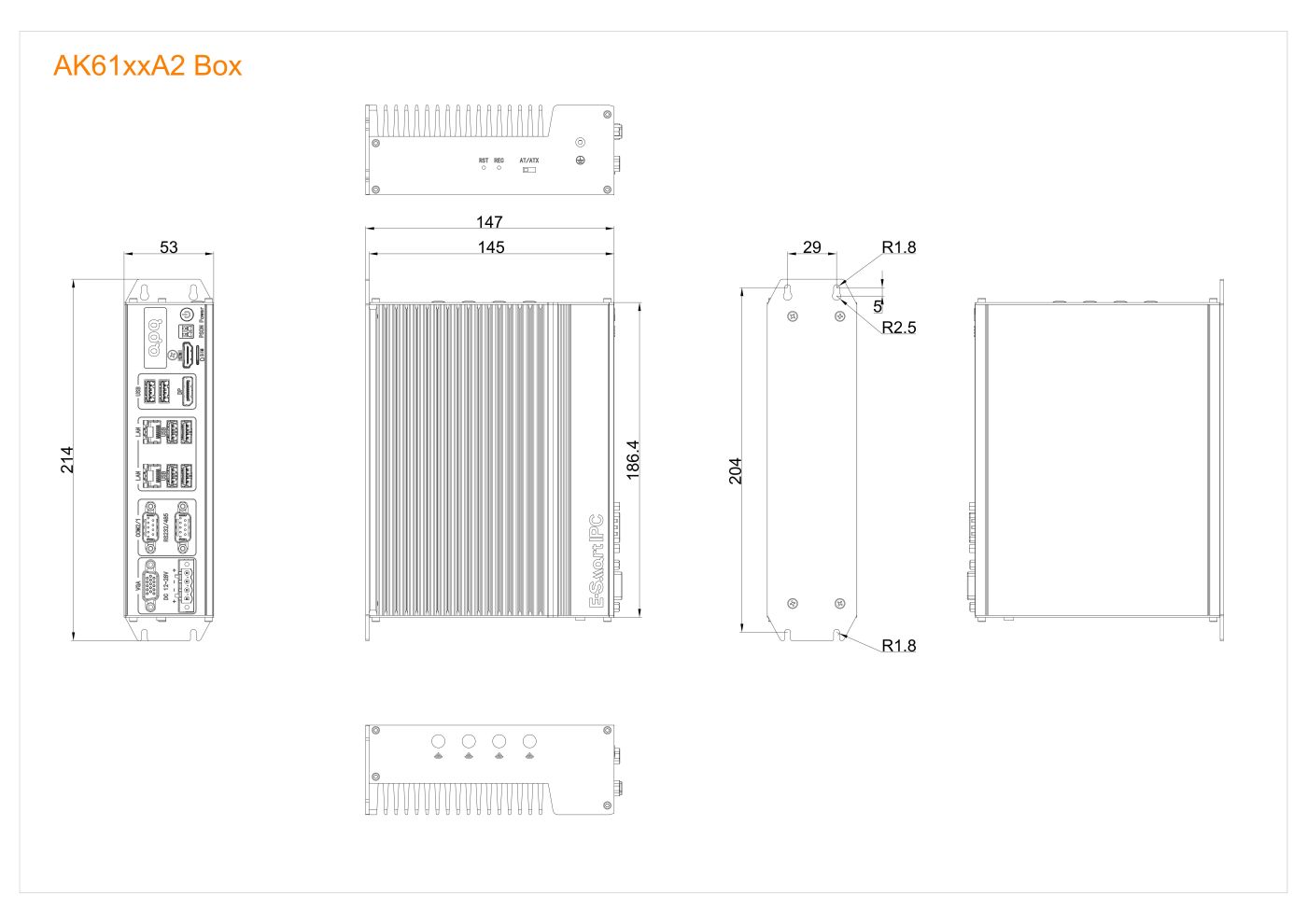

| Dimensions | 53mm(L) * 145mm(W) * 186.4mm(H) | |

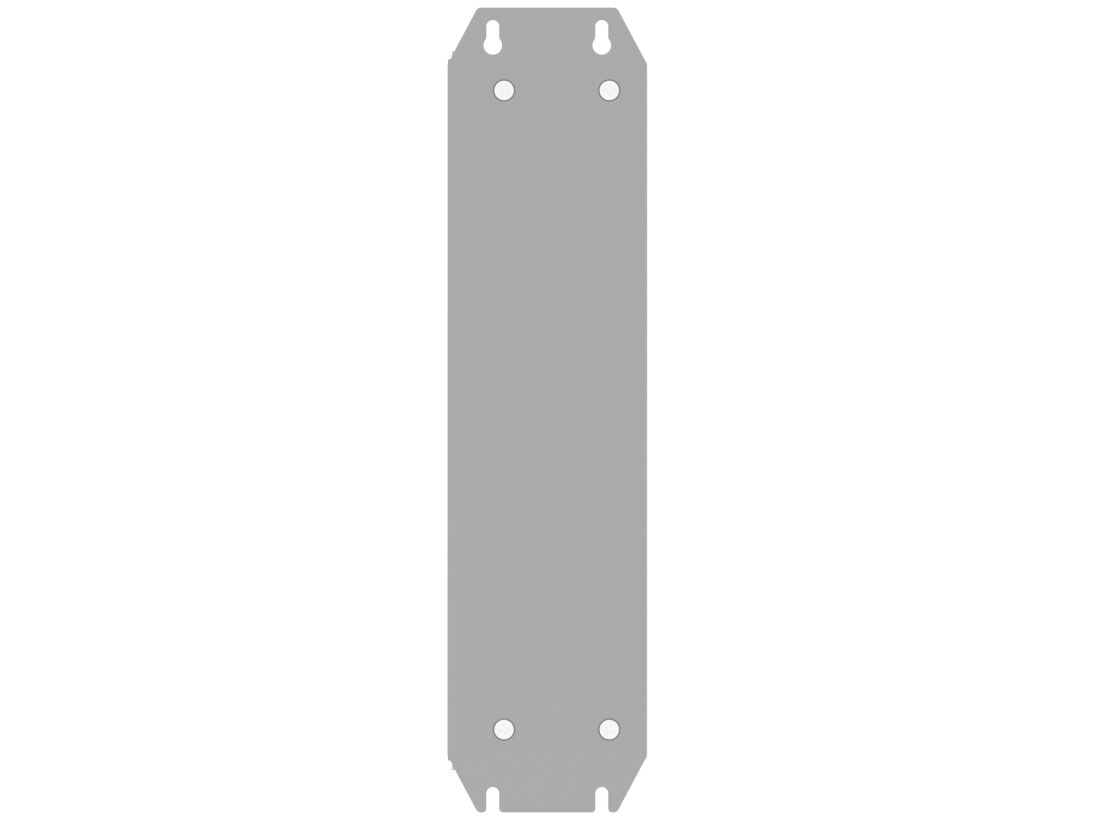

| Mounting | Wall mounted, DIN, Desktop | |
|
Environment |
Heat Dissipation System | Passive Heat Dissipation |
| Operating Temperature | -20~60℃?(Industrial SSD) | |
| Storage Temperature | -40~80℃?(Industrial SSD) | |
| Relative Humidity | 5 to 90% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
-
