阿普奇 E5M | 多串口帶隔離 無風扇嵌入式工控機
產品描述
阿普奇 E5M 是E系列嵌入式工控機中的工業串口專精型號——以全DB9接口的6路串口和MXM可擴展隔離模塊為核心特色，是面向工業自動化多設備串口通信的專業平臺。
核心配置采用成熟的低功耗平臺（DDR3L SO-DIMM 1333MHz可插拔內存），雙Intel i210-AT工業千兆網口。2.5寸SATA2.0硬盤位+M.2 Key-M（SATA SSD, 2280）雙存儲方案。
串口是E5M的核心——6路COM全部采用DB9/M標準工業接口（非wafer內置插針）：
? COM1/2: RS232/485雙模，直接連接PLC和變頻器
? COM3/4/5/6: RS232，連接傳感器、儀表和HMI
全部DB9接口意味著所有串口設備都可通過標準串口線即插即用——無需打開機箱跳線、無需端子轉接線。這在需要頻繁更換設備和維護的工業現場中具有明顯的便利性優勢。
MXM隔離模塊是E5M的差異化特色——通過內置MXM插槽（LPC+GPIO信號），可選配APQ MXM隔離COM模塊或GPIO擴展模塊。隔離方案通過光電耦合器將串口電路與外部工業設備電氣分離，從根本上阻斷感應電壓和接地環路對控制器造成的隱性損傷。
aDoor擴展接口額外提供USB×4/LAN×2擴展能力。
USB配置：1×USB3.0+3×USB2.0(前置)+4×USB2.0(后置)+3×USB2.0(wafer內置)=11路。顯示VGA+HDMI+LVDS/eDP三屏。
6路全DB9 COM+MXM隔離+11USB+aDoor+LVDS——E5M以傳統DB9接口的工業便利性和MXM隔離保護的雙重優勢，是為多設備串口通信和工業電氣安全要求較高的場景設計的專業嵌入式IPC。
|
Model |
E5M |
|
|
?Processor System |
CPU | Intel??Celeron??Processor J1900, FCBGA1170 |
| TDP | 10W | |
| Chipset | SOC | |
| BIOS | AMI UEFI BIOS | |
|
Memory |
Socket | 1 * DDR3L-1333MHz SO-DIMM Slot |
| Max Capacity | 8GB | |
|
Graphics |
Controller | Intel??HD Graphics |
|
Ethernet |
Controller | 2 * Intel??i210-AT (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15 + 7pin) |
| M.2 | 1 * M.2 Key-M Slot (support SATA SSD, 2280) | |
|
Expansion Slots |
MXM/aDoor | 1 * MXM Slot (LPC + GPIO, support COM/GPIO MXM card) |
| Mini PCIe | 1 * Mini PCIe Slot (PCIe2.0 + USB2.0, with 1 * Nano SIM Card) | |
|

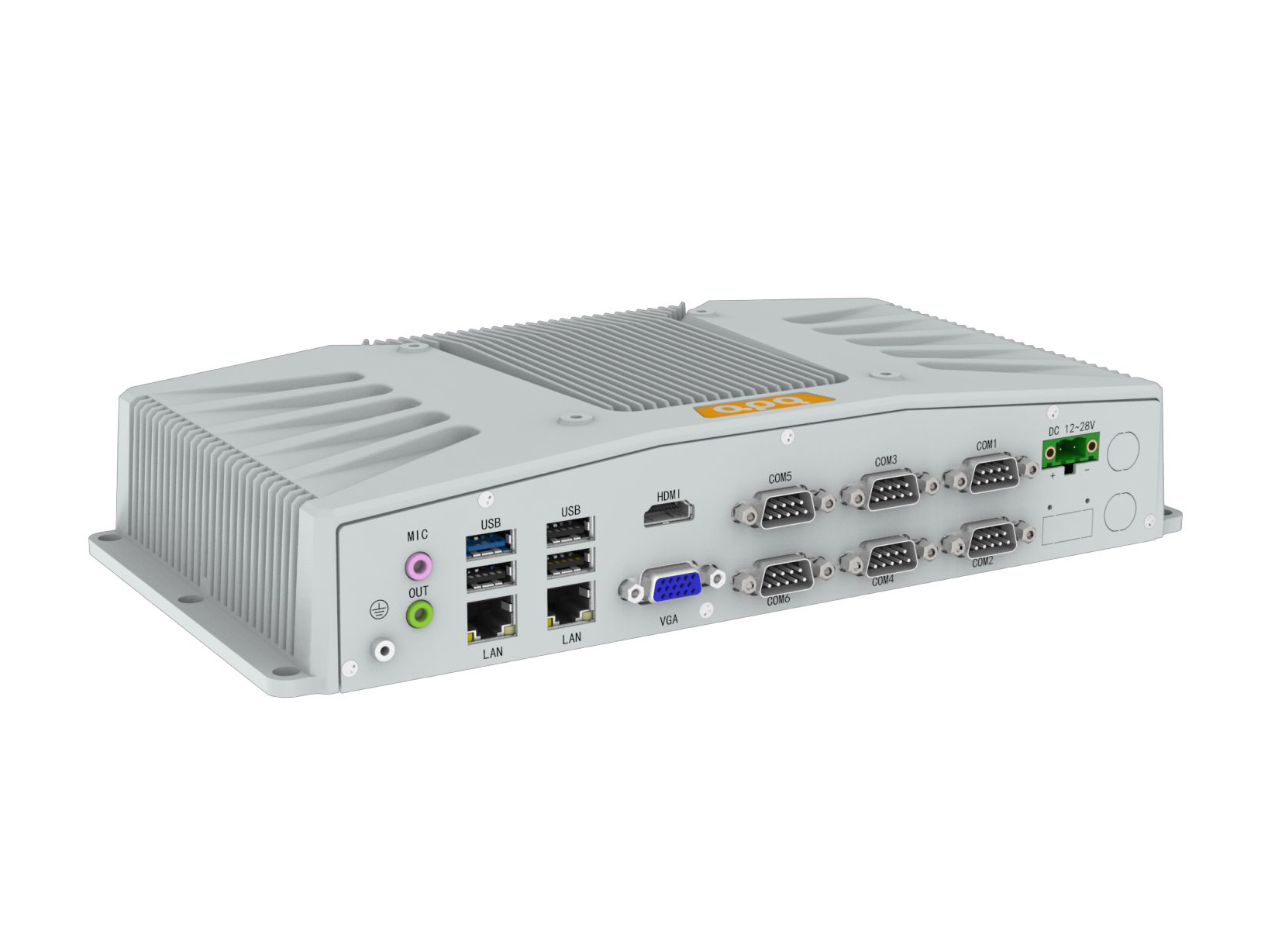

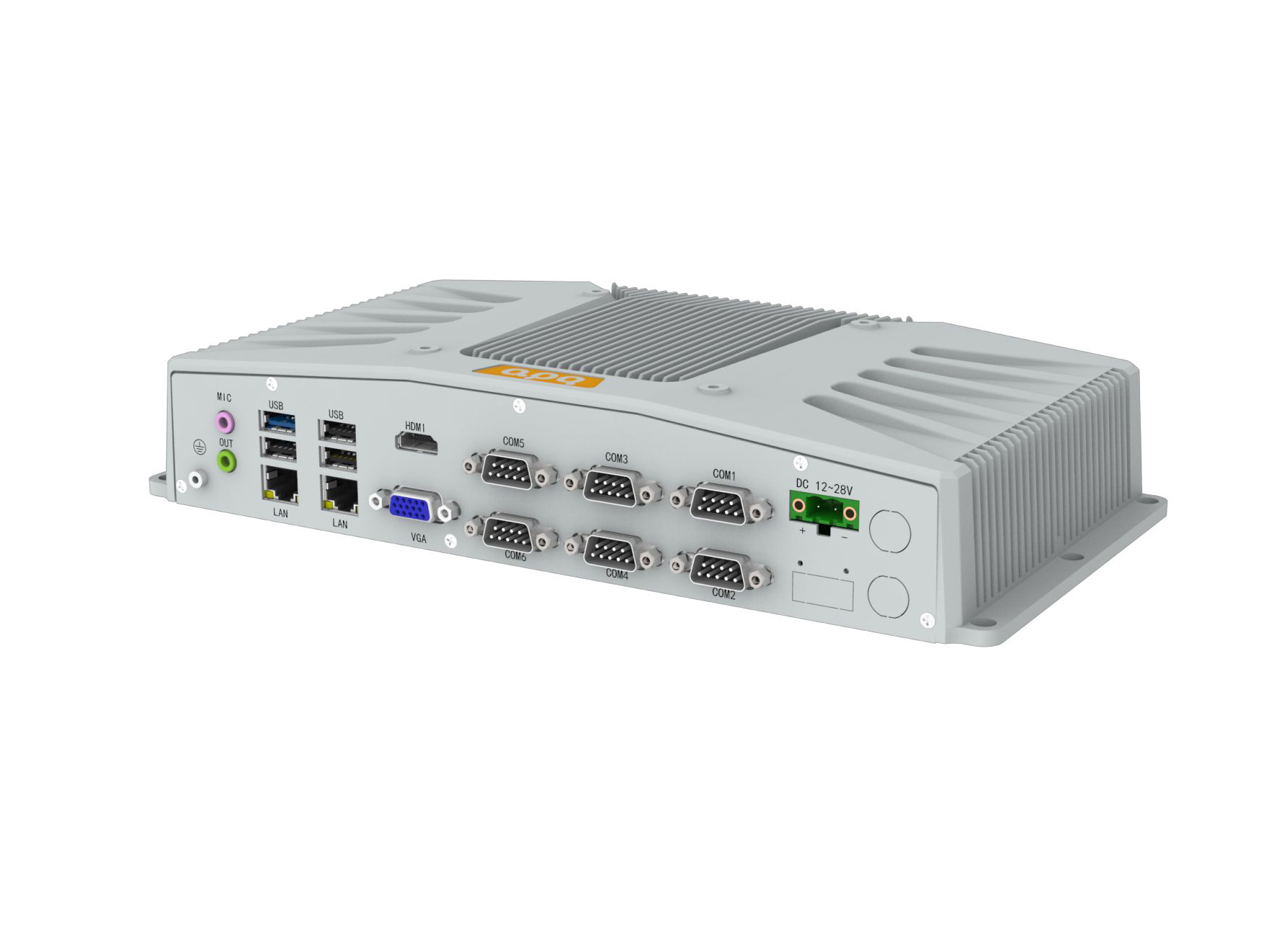

Front I/O |
USB | 1 * USB3.0 (Type-A) 3 * USB2.0 (Type-A) |
| Ethernet | 2 * RJ45 | |
| Display | 1 * VGA: max resolution up to 1920*1280 @ 60Hz 1 * HDMI: max resolution up to 1920*1280 @ 60Hz |
|
| Audio | 1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack |
|
| Serial | 2 * RS232/485 (COM1/2, DB9/M) 4 * RS232 (COM3/4/5/6, DB9/M) |
|
| Power | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | |
|

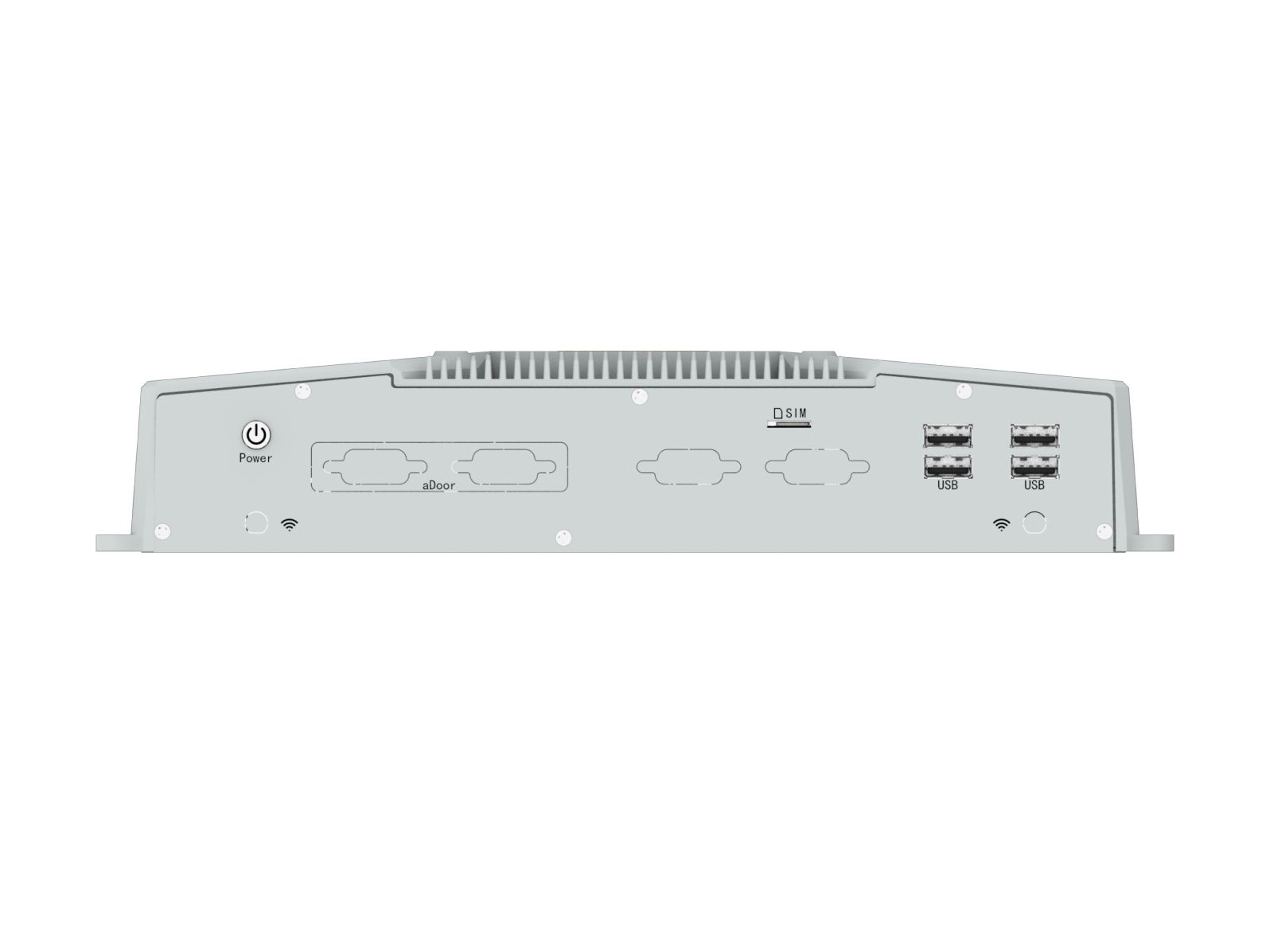

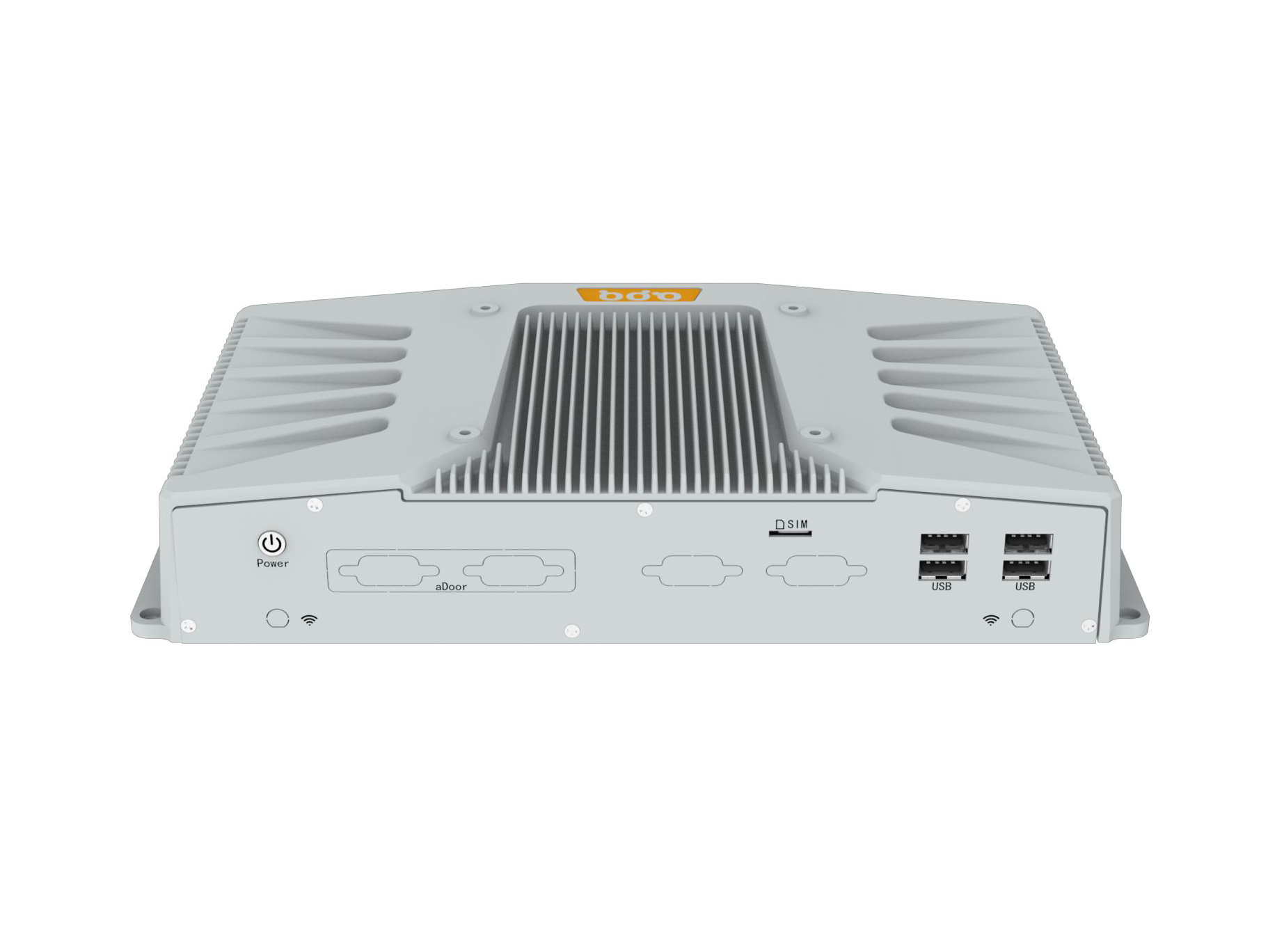

Rear I/O |
USB | 4 * USB2.0 (Type-A) |
| SIM | 1 * Nano SIM Card slot | |
| Button | 1 * Power Button with LED | |
|
Internal I/O |
Front Panel | 1 * TFront Panel (3 * USB2.0 + Front Panel, wafer) 1 * Front Panel (wafer) |
| FAN | 1 * SYS FAN (wafer) | |
| LPC | 1 * LPC (wafer) | |
| PS/2 | 1 * PS/2 (PS/2 keyboard + mouse, wafer) | |
| USB | 2 * USB2.0 (wafer) | |
| Power | 1 * DCIN (Power input, wafer) | |
| Display | 1 * LVDS/eDP (Default LVDS, wafer) | |
| GPIO | 1 * 16bits DIO (8xDI and 8xDO, wafer) | |
| Audio | 1 * Front Audio (Line-Out + MIC, header) 1 * Speaker (2-W (per channel)/8-Ω?Loads, wafer) |
|
|
Power Supply |
Type | DC |
| Power Input Voltage | 12~28VDC | |
| Connector | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 7/8.1/10 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: SGCC |
| Dimensions | 293.5mm(L) * 149.5mm(W) * 54.5mm(H) | |
| Weight | Net: 2.1Kg
Total: 3.1Kg (include packaging) |
|
| Mounting | VESA, Wall mounted, Desk mounting | |
|
Environment |

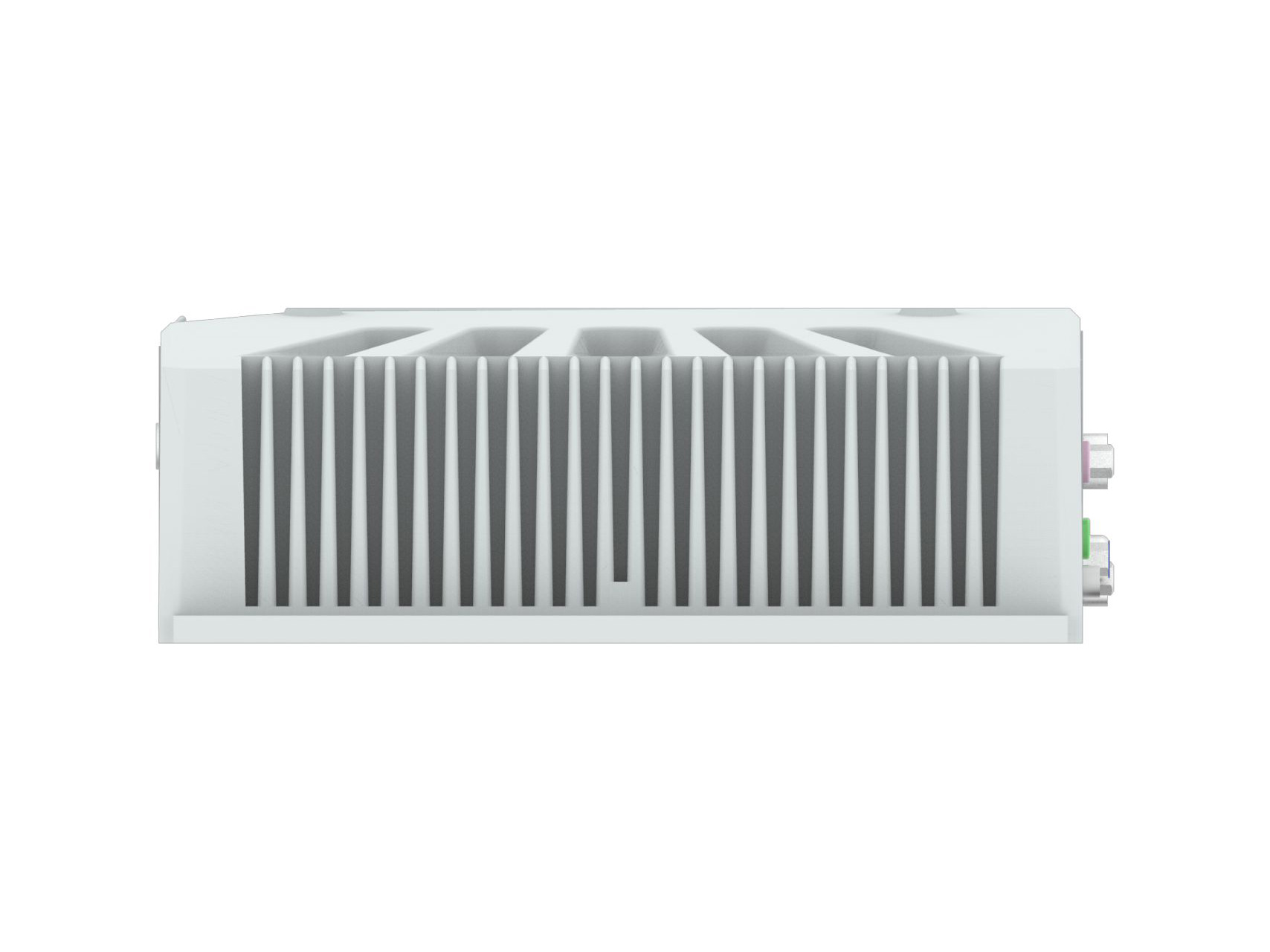

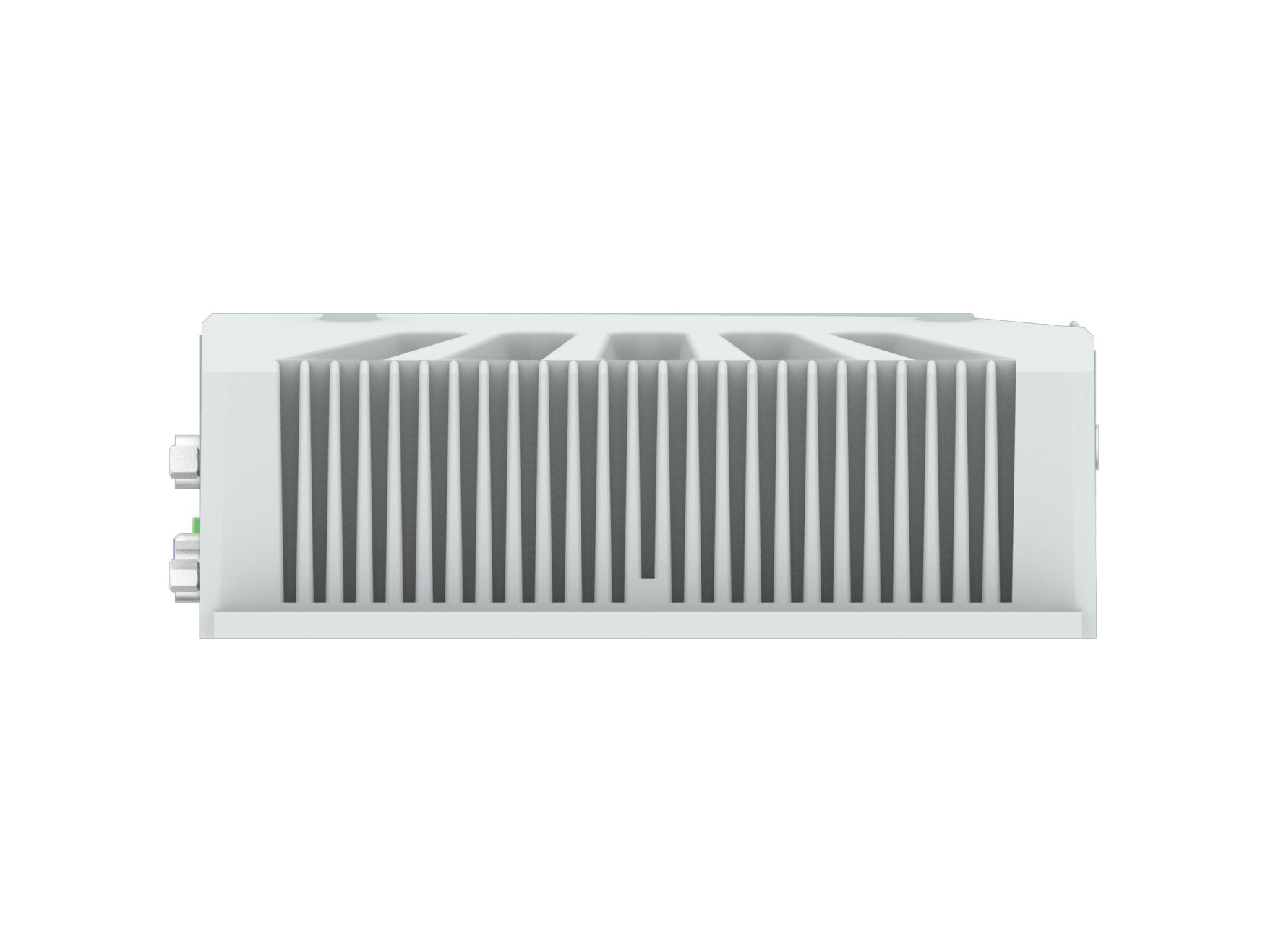

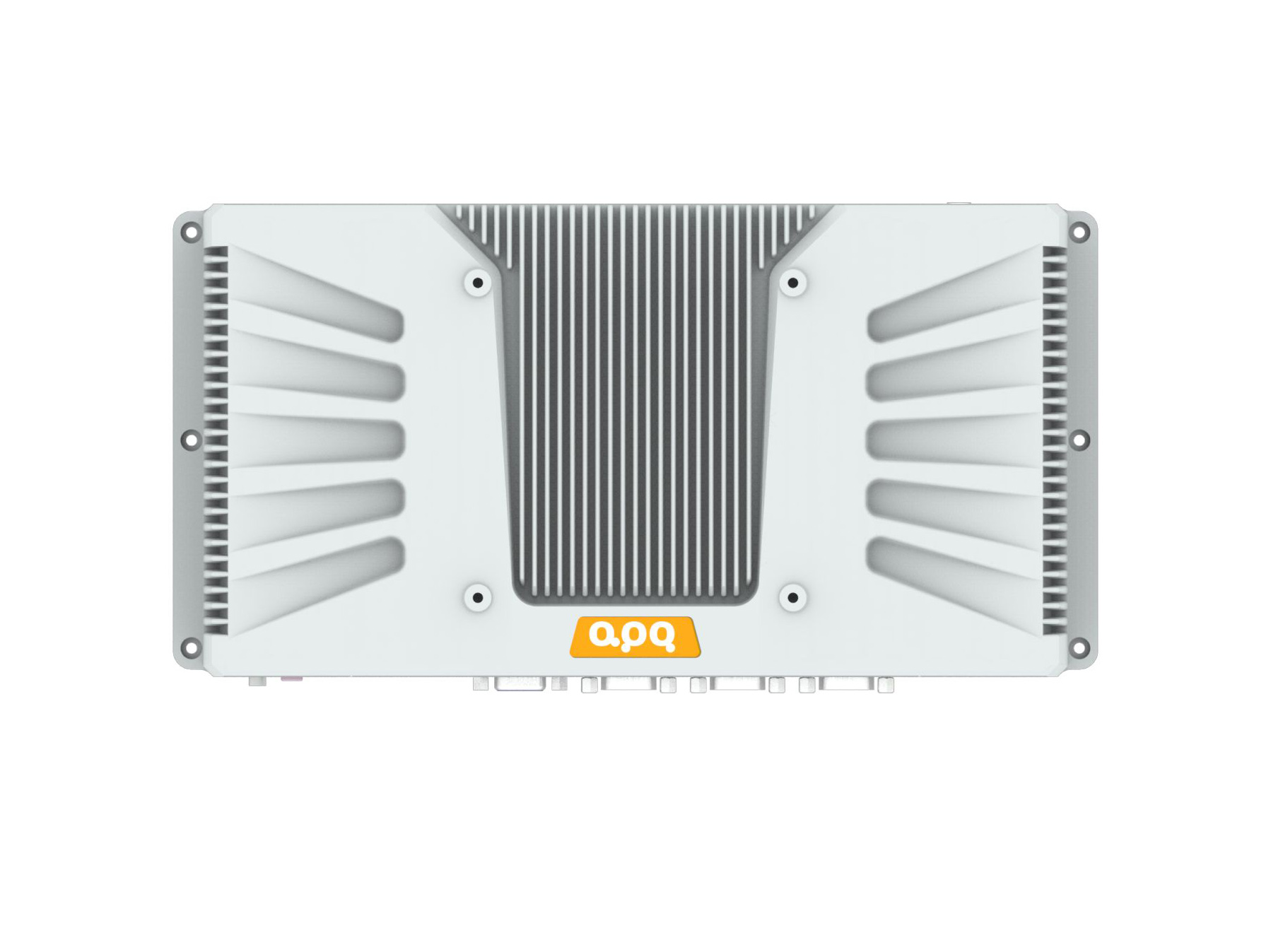

Heat Dissipation System | Passive heat dissipation |
| Operating Temperature | -20~60℃? | |
| Storage Temperature | -40~80℃ | |
| Relative Humidity | 5 to 95% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
| Certification | CE/FCC, RoHS | |
-
