阿普奇 IPC350-H81 | 4/5th 3個PCIe 4個PCI 8個USB 7槽位壁掛式工控機
產品描述

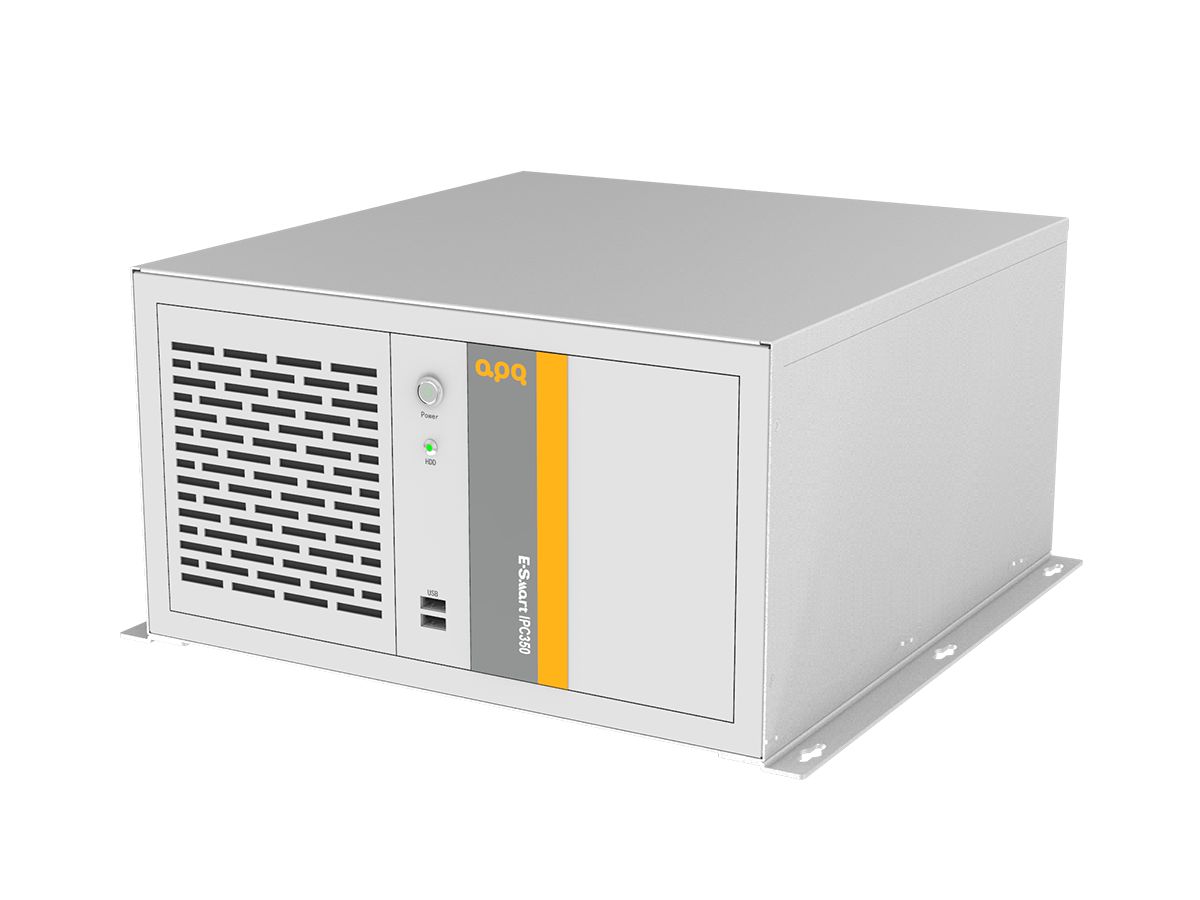

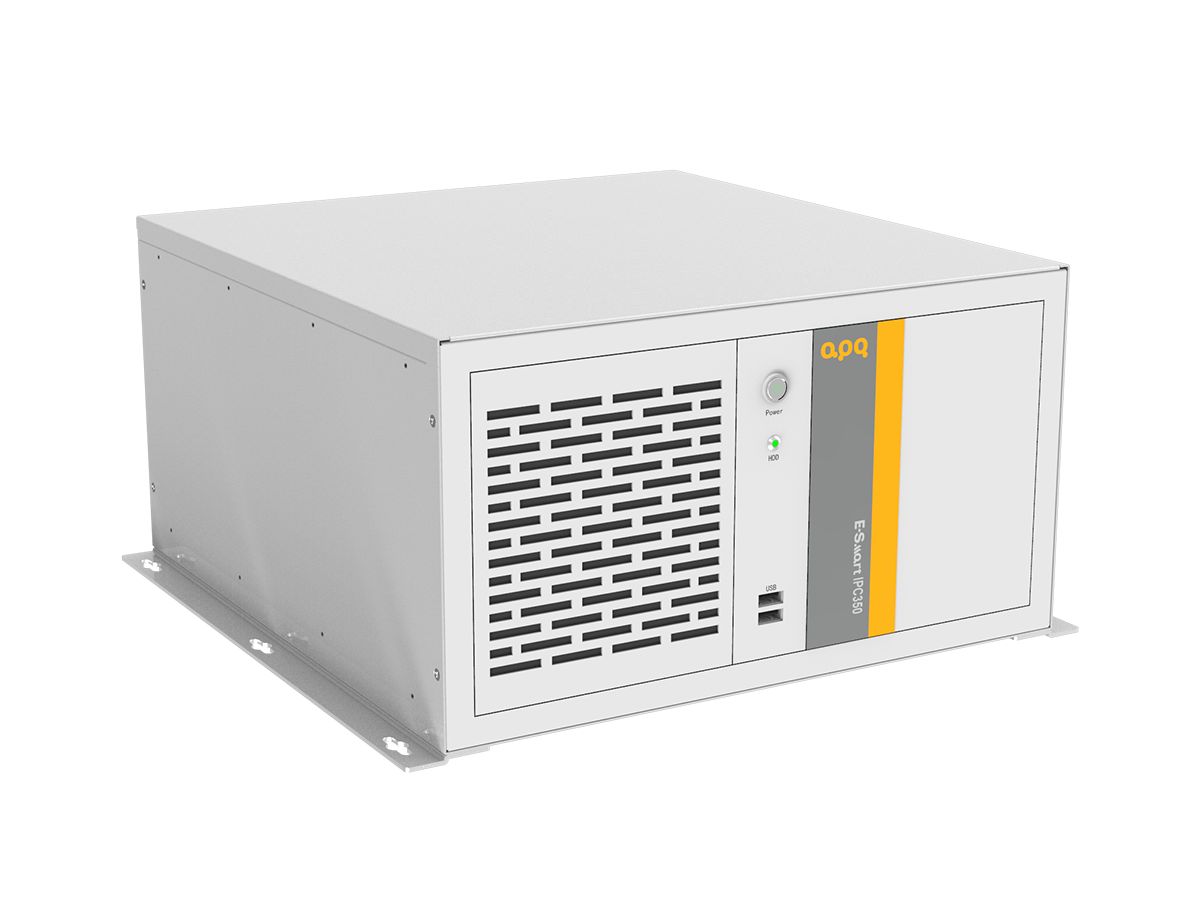

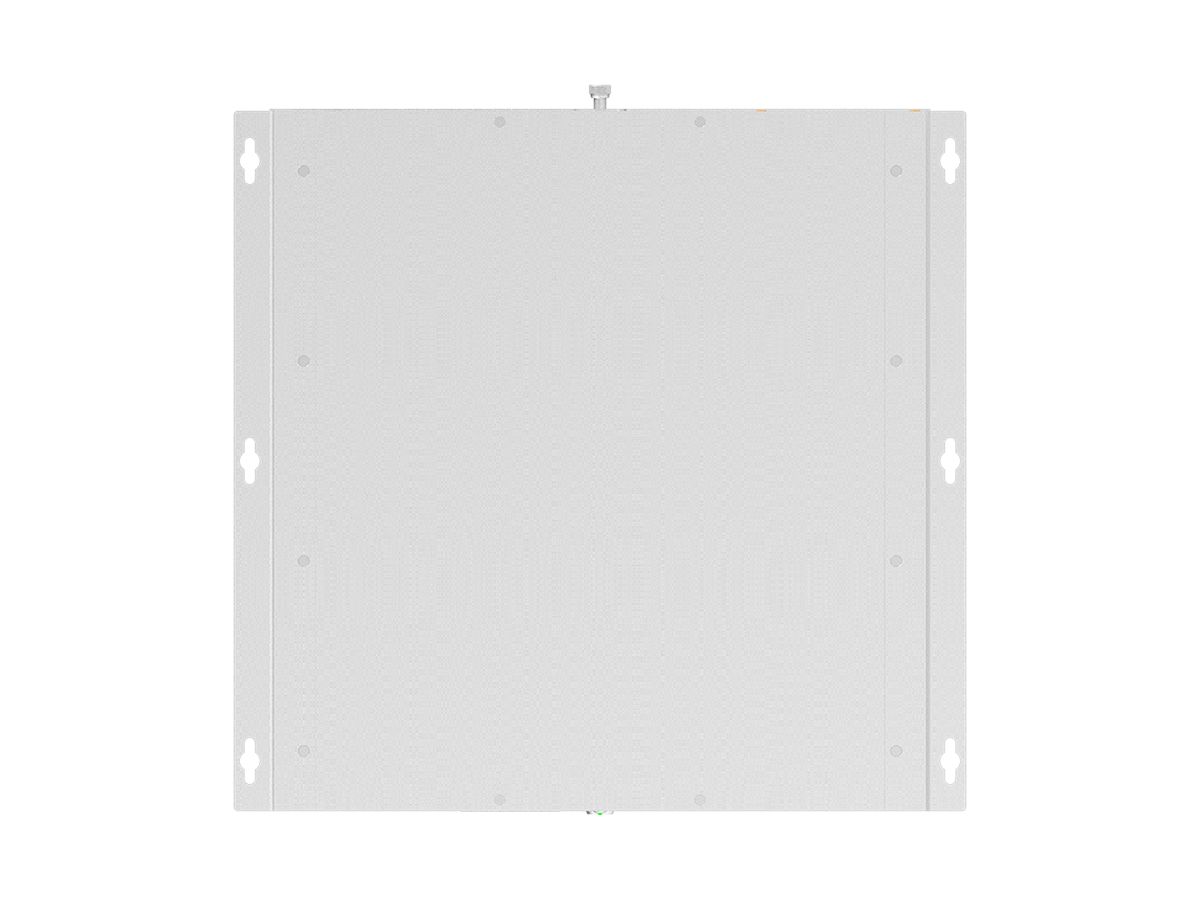

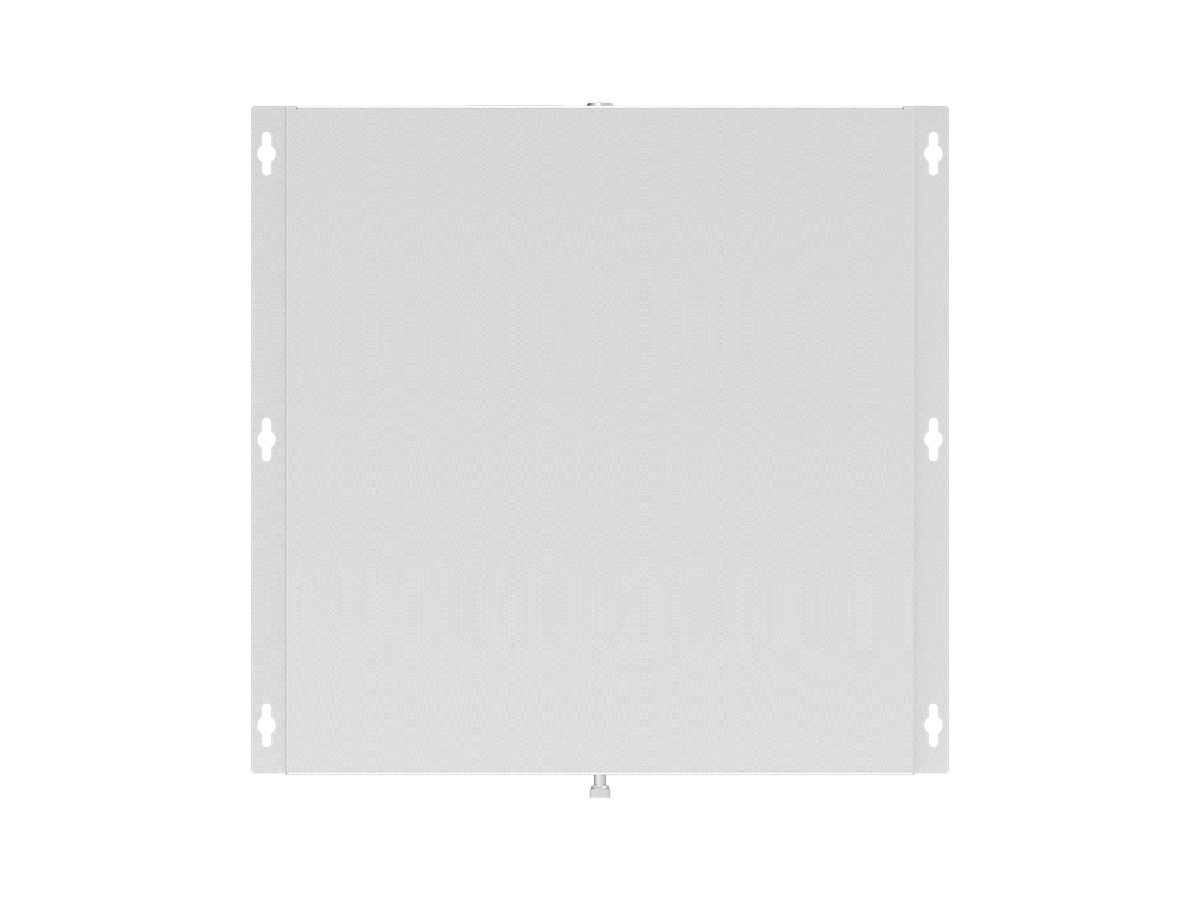

阿普奇 IPC350-H81 是IPC350系列壁掛式工控機中的7槽位超大擴展型號。IPC350是阿普奇壁掛式工控機中擴展能力最強的系列，采用大尺寸機箱，提供多達7個全高擴展槽位。
核心配置：Intel 4/5代酷睿桌面處理器，H81芯片組，2×U-DIMM DDR3 1600MHz（標準臺式內存）。存儲提供1×SATA3.0 + 2×SATA2.0 + M.2 Key-M（SATA SSD）。網絡配備雙Intel千兆網口（i210-AT + i218-LM/V）。
擴展是該型號的核心——3×PCIe（x16 + x4 + x1）+ 4×PCI共7個全高擴展槽位，在壁掛式工控機中擴展能力較為突出，堪比上架式IPC400系列。可同時安裝3張PCIe板卡（AI加速卡、高速采集卡、多口網卡）和4張PCI傳統板卡（運動控制卡、多串口卡、模擬量采集卡）。USB提供8路，顯示VGA + DVI-D + HDMI三路獨立。6路COM（2路RS232/422/485），16路DIO，內置3W揚聲器。
7槽全高擴展使IPC350-H81在壁掛形態中提供了不亞于4U上架式機型的擴展能力，適合空間受限但需要大量板卡安裝的工業場景。
|
Model |
IPC350-H81 |
|
|
Processor System |
CPU | Support Intel??4/5th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 95W | |
| Socket | LGA1150 | |
| Chipset | H81 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR3 up to 1600MHz |
| Capacity | 16GB, Single Max. 8GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)
1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 1 * SATA3.0 7P Connector
2 * SATA2.0 7P Connector |
| M.2 | 1 * M.2 Key-M (SATA SSD, SATA 3.0, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 1 * PCIe x16 slot (Gen 3, x16 signal)
1 * PCIe x4 slot (Gen 2, x2 signal,?Default, co-lay with?Mini PCIe) 1 * PCIe x1 slot (Gen 2, x1 signal) |
| PCI | 4 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0 (Opt., co-lay with PCIe x4 slot), with 1 * SIM Card) | |
|

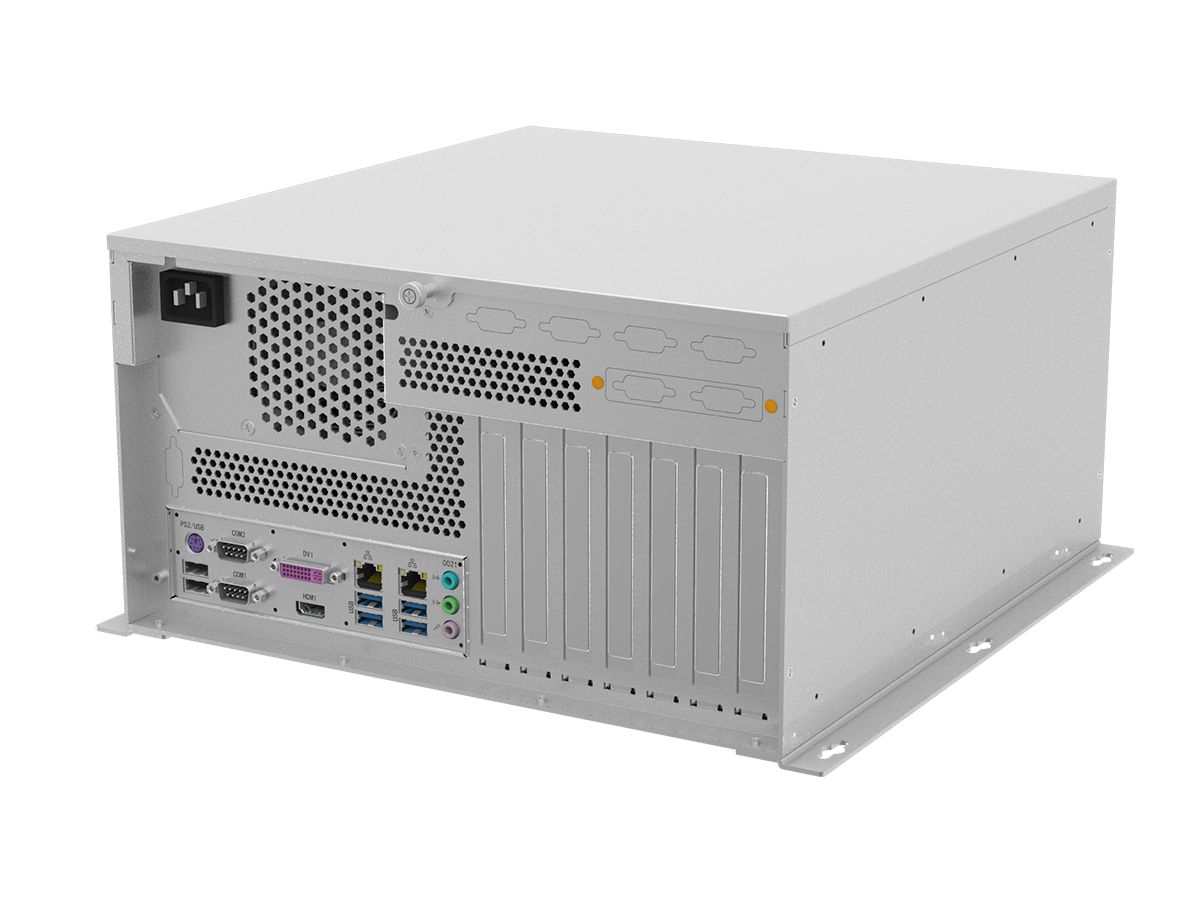

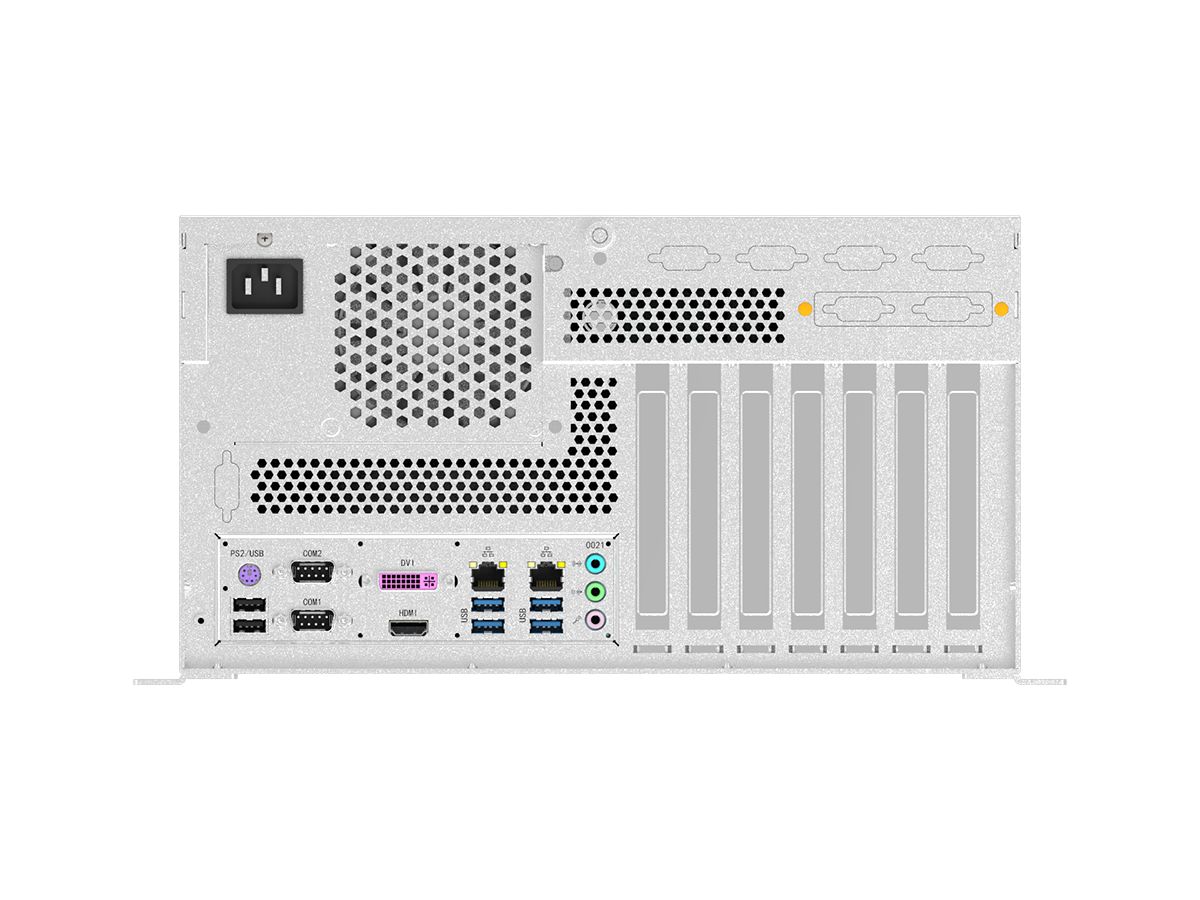

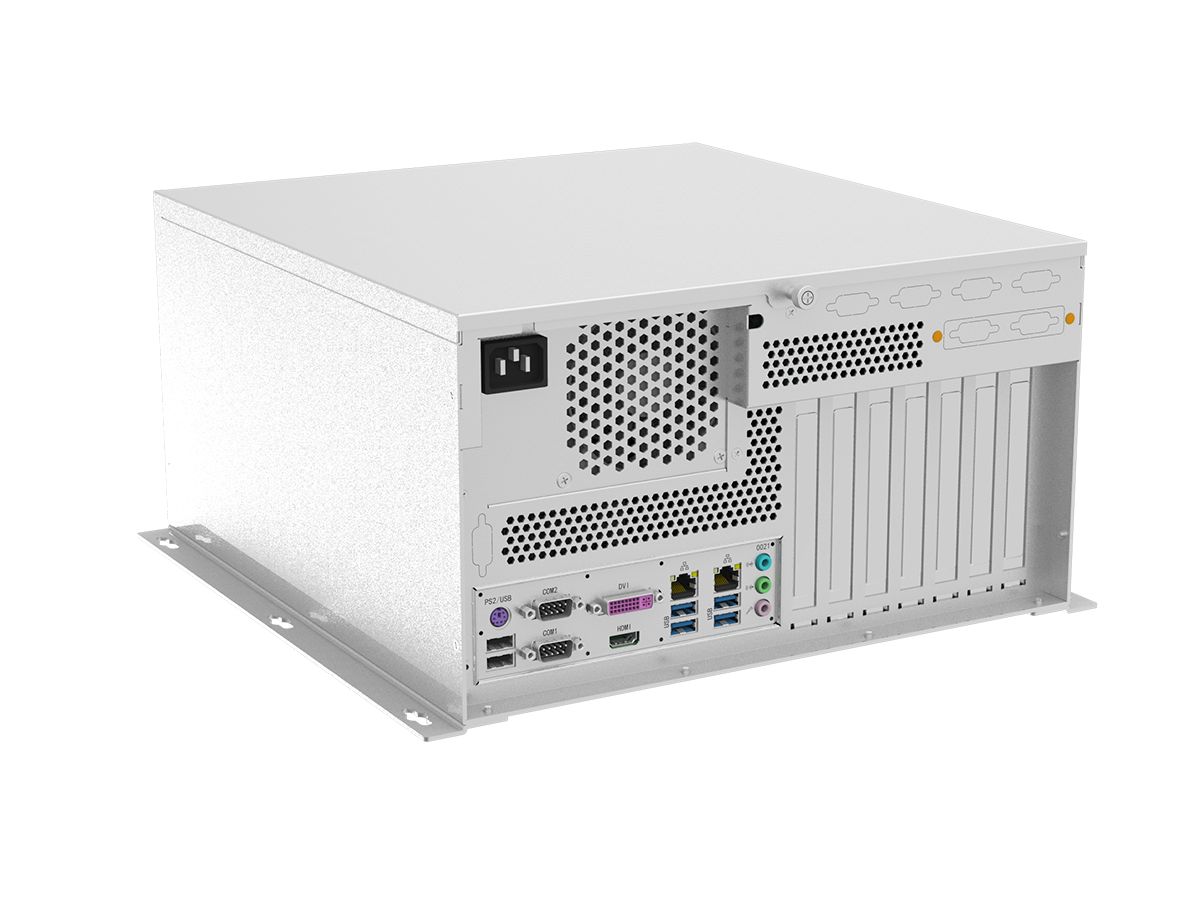

Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB3.0 (Type-A)
4 * USB2.0 (Type-A) |
|
| PS/2 | 1 * PS/2 (Keyboard & Mouse) | |
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz 1 * HDMI1.4: max resolution up to 4096*2160 @ 24Hz |
|
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|
Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED
1 * Hard drive status LED |
|
|
Internal I/O |
USB | 1 * USB2.0 (Vertical TYEP-A) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)
1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) |
|
| Audio | 1 * Front Audio (Line-Out + MIC, Header)
1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) |
|
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 3 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| FAN | 2 * SYS FAN (Header)
1 * CPU FAN (Header) |
|
|
Power Supply |
Type | ATX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 7/10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC |
| Dimensions | 330mm(L) * 350mm(W) * 180mm(H) | |
| Mounting | Wall mounted, Desktop | |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 90% RH (non-condensing) | |
-
